Labeling Machine

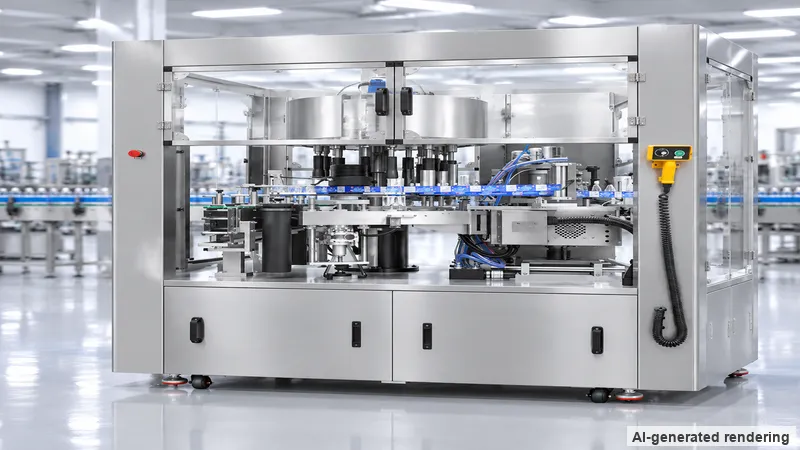

Model ZS-CYXR12 · Labeling Machine
Last updated: 2026-10
High-throughput hot-melt glue labeler for round bottles: applies OPP, pearlescent, paper-plastic composite and paper labels at a stated 12,000 bottles/hour (customizable to 12,000/15,000/20,000/24,000 BPH) with a stated plus-or-minus 1 mm accuracy, gluing at a stated 120-160 degrees C inside a stated stainless-steel enclosure.
The ZS-CYXR12 is a hot-melt glue labeler for round bottles stated at 12,000 bottles/hour, customizable to stated 12,000/15,000/20,000/24,000 BPH, applying film and paper labels at a stated plus-or-minus 1 mm inside a stainless-steel enclosure.
| Filling speed | 12,000 bottles/hour (customizable 12,000/15,000/20,000/24,000 BPH) |
|---|---|
| Container range | Diameter: 30-86mm; Height: 70-360mm |
| Power supply | 3-phase 380V, 50Hz, 11kW |
| Dimensions | (L)3300mm × (W)1400mm × (H)2100mm |
| Labeling accuracy | ±1mm |
| Label size | 15-1500mm |
| Construction materials | Stainless-Steel Enclosure |
Technical specifications come from the machine manufacturer's published parameter tables. Price, lead time and warranty are shown here only when confirmed; otherwise request a quote.
Request a quote for current lead time and pricing against your configuration.
Commercial invoice, packing list, bill of lading and the machine's parameter documentation are provided with every export shipment. Machine-specific certificates, when applicable, are stated on the quotation — we list exactly what accompanies your order instead of claiming standard paperwork.
A quotation is prepared from: the machine model (or the product and container to pack), target output, destination country and any documentation your import process requires. Stating these up front keeps the quote comparable across suppliers.
Supply runs through own production plus a vetted outsourcing network, so the catalogue is not capped by one factory's floor. Typical lead times and current production slots are confirmed on the quotation for your configuration — no lead time on this page is a commitment.
Machines ship export-grade crated with a container loading plan. Store crated machines dry and upright, keep the protective film on until installation, and run the first production batch after on-site power and air supply are confirmed.
The page states hot-melt glue is applied to the start and end of the label at 120-160 degrees C, so label stock is plain film or paper rather than pre-glued rolls; confirm your supplier cuts the stated 15-1500 mm sizes.
These are same-family alternatives, not drop-in equivalents — confirm the selection against your product, container and target output before ordering.
