Filling Machine

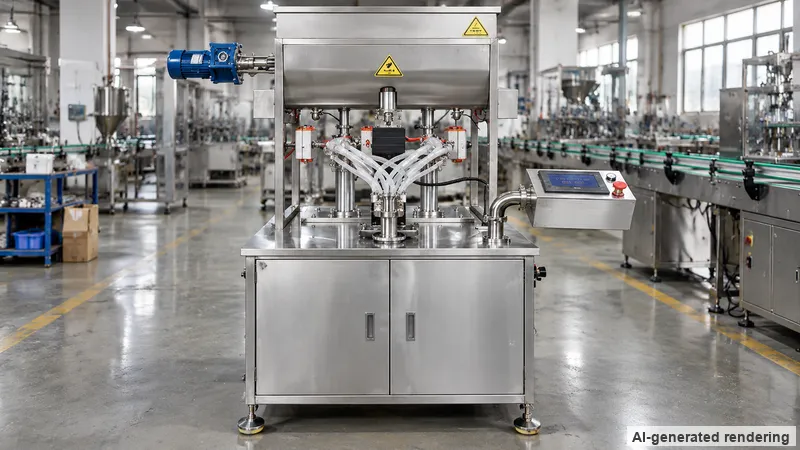

Model ZS-FM250 · Filling Machine
Semi-automatic piston-pump paste filler for dual-color swirl products such as cosmetics and toothpaste. A heated, stirred stainless-steel hopper feeds a servo-driven rotating mold that dispenses through the filling nozzles; container handling runs on custom molds for round and polygon bottles, and product temperature stays at or below 100°C.
The ZS-FM250 is a semi-automatic piston-pump filler for dual-color swirl paste products such as cosmetics and toothpaste, stated at 200–600 PBH with custom molds for round or polygon bottles and a 220/380V, 8kW supply.
| Filling speed | Approx. 200–600 PBH (based on filling volume and bottle size) |
|---|---|
| Fill range | 30–250g / 50g |
| Container range | Round bottle / polygon bottle (custom mold required based on bottle type) |
| Power supply | 220/380V, 50Hz, 8kW |
| Dimensions | Approx. 900 × 950 × 2000mm |
| Starting price | $19,800 |
| Construction materials | stainless-steel hopper (heated, with stirring) |
Technical specifications come from the machine manufacturer's published parameter tables. Price, lead time and warranty are shown here only when confirmed; otherwise request a quote.
Request a quote for current lead time and pricing against your configuration.
Commercial invoice, packing list, bill of lading and the machine's parameter documentation are provided with every export shipment. Machine-specific certificates, when applicable, are stated on the quotation — we list exactly what accompanies your order instead of claiming standard paperwork.
A quotation is prepared from: the machine model (or the product and container to pack), target output, destination country and any documentation your import process requires. Stating these up front keeps the quote comparable across suppliers.
Supply runs through own production plus a vetted outsourcing network, so the catalogue is not capped by one factory's floor. Typical lead times and current production slots are confirmed on the quotation for your configuration — no lead time on this page is a commitment.
Machines ship export-grade crated with a container loading plan. Store crated machines dry and upright, keep the protective film on until installation, and run the first production batch after on-site power and air supply are confirmed.
Ask the supplier to run your actual paste and bottle at the rate you need, then document the measured output, the product viscosity, and the mold changeover time between batches.
These are same-family alternatives, not drop-in equivalents — confirm the selection against your product, container and target output before ordering.
