Labeling Machine

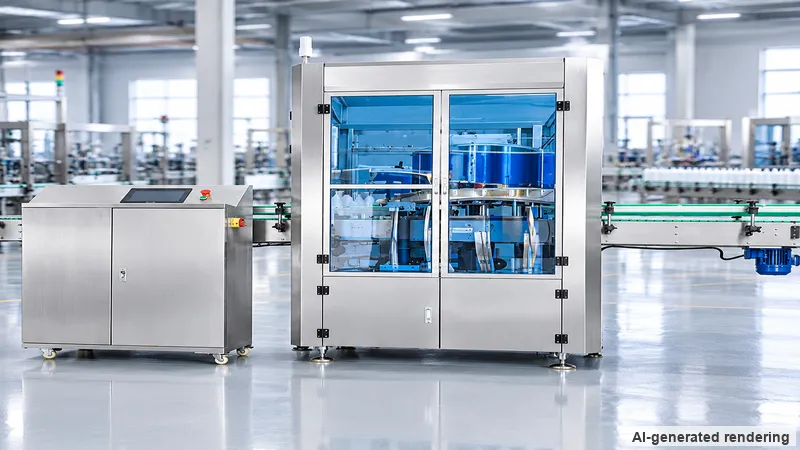

Model ZS-GTB12 · Labeling Machine
Last updated: 2026-10
Twelve-station rotary hot-melt labeler for round bottles: auger separation and customized star wheels feed a stated 12,000-15,000 bottles per hour, while the integrated feeder cuts and feeds OPP, composite-film and paper labels with hot melt applied at a stated 120-160 degrees C.
The ZS-GTB12 is a twelve-station rotary hot-melt labeler stated at 12,000-15,000 bottles per hour, with auger separation, customized star wheels and integrated OPP label cutting and feeding.
| Filling speed | 12,000-15,000 bottles per hour (bph) |
|---|---|
| Power supply | 3-phase, 380V, 8000W |
| Dimensions | 165 × 135 × 210 cm (Length × Width × Height) |
| Label size | Width: 140mm (customizable), Length: 430mm |
| Machine weight | 2000kg |
| Construction materials | stainless steel |
Technical specifications come from the machine manufacturer's published parameter tables. Price, lead time and warranty are shown here only when confirmed; otherwise request a quote.
Request a quote for current lead time and pricing against your configuration.
Commercial invoice, packing list, bill of lading and the machine's parameter documentation are provided with every export shipment. Machine-specific certificates, when applicable, are stated on the quotation — we list exactly what accompanies your order instead of claiming standard paperwork.
A quotation is prepared from: the machine model (or the product and container to pack), target output, destination country and any documentation your import process requires. Stating these up front keeps the quote comparable across suppliers.
Supply runs through own production plus a vetted outsourcing network, so the catalogue is not capped by one factory's floor. Typical lead times and current production slots are confirmed on the quotation for your configuration — no lead time on this page is a commitment.
Machines ship export-grade crated with a container loading plan. Store crated machines dry and upright, keep the protective film on until installation, and run the first production batch after on-site power and air supply are confirmed.
The page states hot-melt glue is applied at a controlled 120-160 degrees C to each label before the twelve-station wheel wraps it, so adhesion does not rely on pressure-sensitive stock; confirm your glue supply matches the stated system.
These are same-family alternatives, not drop-in equivalents — confirm the selection against your product, container and target output before ordering.
