Cartoning Machine
Model ZS-MSZH50R · Cartoning Machine
Last updated: 2026-10

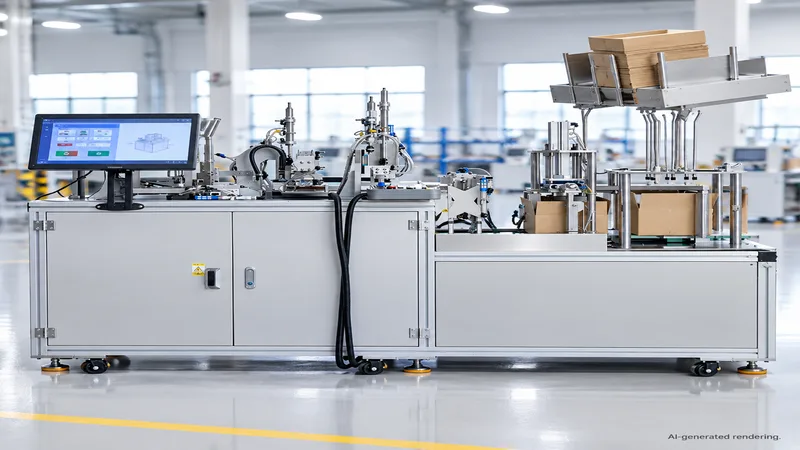

Tray-forming cartoner for cosmetics and daily-chemical products: the pneumatic tray handler opens each sliding carton, sensors confirm bottle presence, and the rotary folding workbench closes the tray in sequence at a stated 10-12 boxes/min. Usable standalone or line-integrated, it takes 80-220 mm long cartons up to 170 mm wide and 70 mm high, keeping bottle insertion and carton closure on one small frame.
The ZS-MSZH50R is a tray-forming cartoner for cosmetics and daily-chemical products, stated at 10-12 boxes/min on a 2 kW single-phase drive, opening sliding cartons, confirming bottles by sensor and closing trays on a rotary workbench.
| Filling speed | Approx. 10-12 boxes/min |
|---|---|
| Container range | Approx. 80-220 mm (L) x 40-170 mm (W) x 20-70 mm (H) |
| Power supply | 220V, 50-60Hz, single phase, 2 kW; 0.5-0.8 MPa air |
| Dimensions | Approx. 2300 x 1220 x 1650 mm |
| Starting price | $42,999 |
| Machine weight | Approx. 1000 kg |
| Construction materials | Box trays, Sliding cartons |
Technical specifications come from the machine manufacturer's published parameter tables. Price, lead time and warranty are shown here only when confirmed; otherwise request a quote.
Request a quote for current lead time and pricing against your configuration.
Commercial invoice, packing list, bill of lading and the machine's parameter documentation are provided with every export shipment. Machine-specific certificates, when applicable, are stated on the quotation — we list exactly what accompanies your order instead of claiming standard paperwork.
A quotation is prepared from: the machine model (or the product and container to pack), target output, destination country and any documentation your import process requires. Stating these up front keeps the quote comparable across suppliers.
Supply runs through own production plus a vetted outsourcing network, so the catalogue is not capped by one factory's floor. Typical lead times and current production slots are confirmed on the quotation for your configuration — no lead time on this page is a commitment.
Machines ship export-grade crated with a container loading plan. Store crated machines dry and upright, keep the protective film on until installation, and run the first production batch after on-site power and air supply are confirmed.
The page states it forms box trays, inserts bottles and seals sliding cartons, with sensors detecting each bottle before carton placement.
These are same-family alternatives, not drop-in equivalents — confirm the selection against your product, container and target output before ordering.
