Labeling Machine

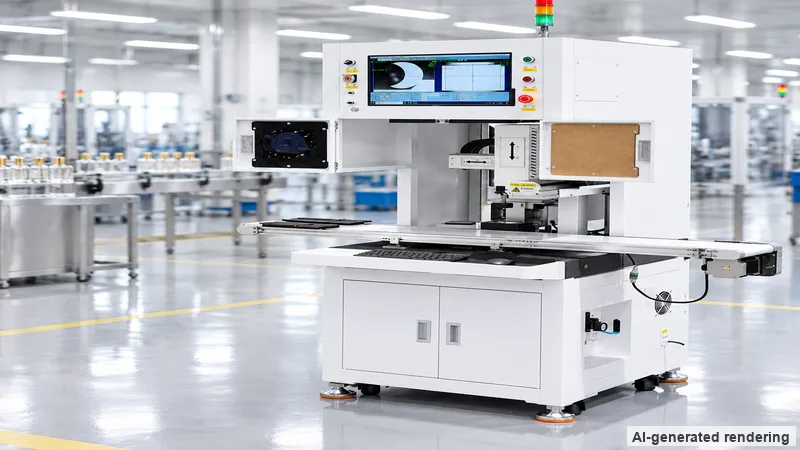

Model ZS-STB3 · Labeling Machine
Last updated: 2026-10
Vision-guided cap labeler for perfume and cosmetic bottles: an industrial camera detects cap orientation and an XYZ servo positioning system with a rotary labeling head applies labels at a stated plus-or-minus 0.1 mm accuracy at a stated 22-25 pcs/min, with a stated 0.6-0.8 MPa air supply.
The ZS-STB3 is a vision-guided cap labeler for perfume and cosmetic bottles, stated at 22-25 pcs/min with a stated plus-or-minus 0.1 mm accuracy from an XYZ servo positioning system and rotary labeling head.
| Filling speed | 22-25 pcs/min |
|---|---|
| Container range | Diameter 56 mm; height 145 mm (Customizable) |
| Power supply | 230 V / 50 Hz |
| Dimensions | About 1300 × 1200 × 1850 mm (Customizable) |
| Labeling accuracy | ±0.1 mm (aligns mark with bottle) |
| Label size | Length 10-65 mm; width 10-65 mm |
| Machine weight | About 180 kg |
| Construction materials | stainless steel |
Technical specifications come from the machine manufacturer's published parameter tables. Price, lead time and warranty are shown here only when confirmed; otherwise request a quote.
Request a quote for current lead time and pricing against your configuration.
Commercial invoice, packing list, bill of lading and the machine's parameter documentation are provided with every export shipment. Machine-specific certificates, when applicable, are stated on the quotation — we list exactly what accompanies your order instead of claiming standard paperwork.
A quotation is prepared from: the machine model (or the product and container to pack), target output, destination country and any documentation your import process requires. Stating these up front keeps the quote comparable across suppliers.
Supply runs through own production plus a vetted outsourcing network, so the catalogue is not capped by one factory's floor. Typical lead times and current production slots are confirmed on the quotation for your configuration — no lead time on this page is a commitment.
Machines ship export-grade crated with a container loading plan. Store crated machines dry and upright, keep the protective film on until installation, and run the first production batch after on-site power and air supply are confirmed.
The page states the camera detects cap orientation and the rotary head aligns each label to the camera-detected position, so marks land relative to the cap, not just the bottle; confirm your caps suit the stated camera.
These are same-family alternatives, not drop-in equivalents — confirm the selection against your product, container and target output before ordering.
