Labeling Machine

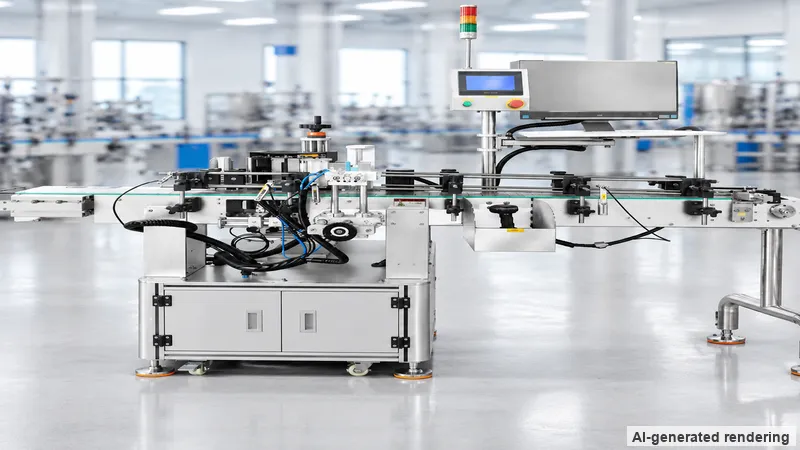

Model ZS-TB164PO · Labeling Machine
Last updated: 2026-10
Barcode-triggered print-and-apply labeler for round bottles: a pneumatic applicator with an adjustable labeling head places printed labels at a stated 23-28 pcs/min with a stated plus-or-minus 1 mm accuracy, pressing each label flat with rollers for bubble-free attachment.
The ZS-TB164PO is a barcode-triggered print-and-apply labeler for round bottles, stated at 23-28 pcs/min with a stated plus-or-minus 1 mm accuracy and roller pressing for bubble-free attachment.
| Filling speed | 23-28 pcs/min (depending on product and label size) |
|---|---|
| Container range | Diameter: 52mm, Length: 130mm (Customized) |
| Power supply | 230V / 50Hz |
| Dimensions | About 1800mm x 800mm x1400mm |
| Labeling accuracy | ±1mm |
| Label size | Length 40-250mm; width 20-100mm (customized) |
| Machine weight | About 210kg |
| Construction materials | stainless steel |
Technical specifications come from the machine manufacturer's published parameter tables. Price, lead time and warranty are shown here only when confirmed; otherwise request a quote.
Request a quote for current lead time and pricing against your configuration.
Commercial invoice, packing list, bill of lading and the machine's parameter documentation are provided with every export shipment. Machine-specific certificates, when applicable, are stated on the quotation — we list exactly what accompanies your order instead of claiming standard paperwork.
A quotation is prepared from: the machine model (or the product and container to pack), target output, destination country and any documentation your import process requires. Stating these up front keeps the quote comparable across suppliers.
Supply runs through own production plus a vetted outsourcing network, so the catalogue is not capped by one factory's floor. Typical lead times and current production slots are confirmed on the quotation for your configuration — no lead time on this page is a commitment.
Machines ship export-grade crated with a container loading plan. Store crated machines dry and upright, keep the protective film on until installation, and run the first production batch after on-site power and air supply are confirmed.
The page states the labeler is barcode-triggered and prints in real time, so each bottle receives the data matching its own scan rather than a pre-printed roll; confirm your upstream codes are readable at your stated 23-28 pcs/min rate.
These are same-family alternatives, not drop-in equivalents — confirm the selection against your product, container and target output before ordering.
