capping machine
Model ZS-XG1870 · capping machine
Last updated: 2026-10

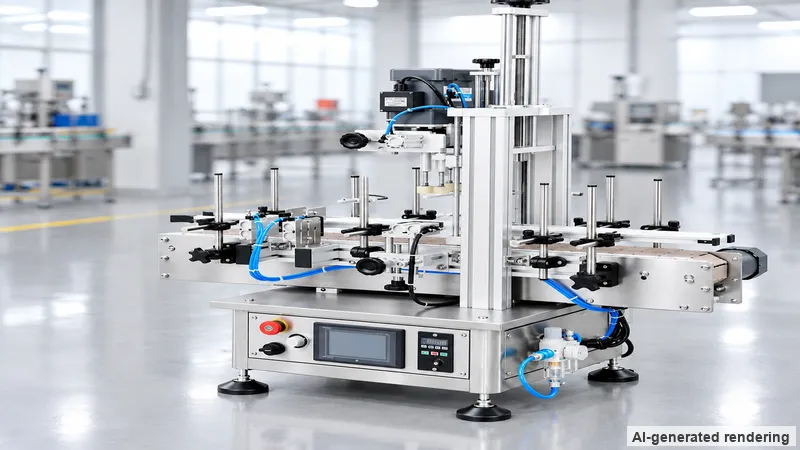

Tabletop pneumatic spindle capper for screw caps and pump closures: four spindle wheels grip and tighten each cap while the bottle passes through, so bottles do not stop on the conveyor. Stated for 18-70 mm caps and 60-270 mm bottle heights on a 1120 mm benchtop frame, it suits small and medium lines where floor space is limited and can be combined with desktop filling and labeling machines into a compact line.
The ZS-XG1870 is a tabletop pneumatic spindle capper that tightens screw and pump caps while bottles keep moving, stated for 18-70 mm caps and 60-270 mm bottle heights on a compact benchtop frame.
| Cap size | 18-70 mm |
|---|---|
| Container range | Bottle Height: 60-270 mm |
| Power supply | AC 220 V / 110 V, 50-60 Hz |
| Dimensions | 1120 x 580 x 1110 mm |
| Construction materials | stainless steel frame |
Technical specifications come from the machine manufacturer's published parameter tables. Price, lead time and warranty are shown here only when confirmed; otherwise request a quote.
Request a quote for current lead time and pricing against your configuration.
Commercial invoice, packing list, bill of lading and the machine's parameter documentation are provided with every export shipment. Machine-specific certificates, when applicable, are stated on the quotation — we list exactly what accompanies your order instead of claiming standard paperwork.
A quotation is prepared from: the machine model (or the product and container to pack), target output, destination country and any documentation your import process requires. Stating these up front keeps the quote comparable across suppliers.
Supply runs through own production plus a vetted outsourcing network, so the catalogue is not capped by one factory's floor. Typical lead times and current production slots are confirmed on the quotation for your configuration — no lead time on this page is a commitment.
Machines ship export-grade crated with a container loading plan. Store crated machines dry and upright, keep the protective film on until installation, and run the first production batch after on-site power and air supply are confirmed.
No. The page describes spindle wheels tightening caps while bottles move through on the conveyor, so flow stays continuous. Because no bottles-per-minute figure is published, ask the supplier what rate your cap and bottle combination reaches before you commit.
These are same-family alternatives, not drop-in equivalents — confirm the selection against your product, container and target output before ordering.
