capping machine
Model ZS-XG445 · capping machine
Last updated: 2026-10

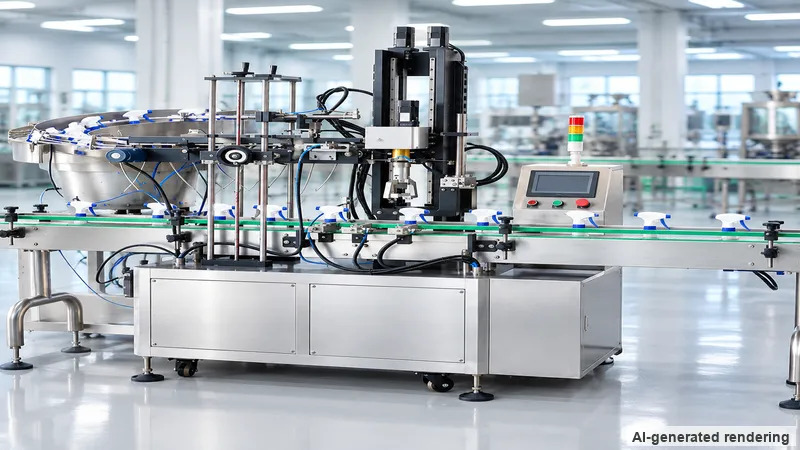

Trigger-spray capping line with cap supply built in: a vibratory bowl sorter orients trigger sprayers, a pick unit places each one, and a servo-driven gripper screws it down with consistent torque at a stated 5-25 bottles/min. The frame is stated as SUS 304 stainless steel, and the bowl is customized to the sprayer shape, for household-chemical and personal-care bottles whose triggers cannot run through an ordinary cap elevator.
The ZS-XG445 is an automatic trigger-spray capper with a vibratory bowl feeder, stated at 5-25 bottles/min, built on a SUS 304 stainless steel frame with a servo-driven gripper for consistent torque.
| Filling speed | 5-25 bottles per minute |
|---|---|
| Container range | Based on customer-provided samples |
| Power supply | 900W, 110V / 220V |
| Dimensions | Approx. 2900 x 950 x 2000 mm |
| Starting price | $14,931 |
| Construction materials | SUS 304 Stainless Steel |
Technical specifications come from the machine manufacturer's published parameter tables. Price, lead time and warranty are shown here only when confirmed; otherwise request a quote.
Request a quote for current lead time and pricing against your configuration.
Commercial invoice, packing list, bill of lading and the machine's parameter documentation are provided with every export shipment. Machine-specific certificates, when applicable, are stated on the quotation — we list exactly what accompanies your order instead of claiming standard paperwork.
A quotation is prepared from: the machine model (or the product and container to pack), target output, destination country and any documentation your import process requires. Stating these up front keeps the quote comparable across suppliers.
Supply runs through own production plus a vetted outsourcing network, so the catalogue is not capped by one factory's floor. Typical lead times and current production slots are confirmed on the quotation for your configuration — no lead time on this page is a commitment.
Machines ship export-grade crated with a container loading plan. Store crated machines dry and upright, keep the protective film on until installation, and run the first production batch after on-site power and air supply are confirmed.
The page states the machine handles trigger sprayers with a vibratory bowl and a servo-driven gripper, because a trigger's stem and nozzle cannot run through an ordinary cap elevator without tangling. Send your trigger samples so the supplier customizes the bowl, since the suitable bottles are set from customer-provided samples rather than a published window.
These are same-family alternatives, not drop-in equivalents — confirm the selection against your product, container and target output before ordering.
