Filling Machine
Model ZS-SV6X · Filling Machine
Last updated: 2026-10
Continuous-motion piston filling machine whose tracking nozzles follow moving bottles for non-stop filling, stated across four pump configurations from 5-100 ml to 100-1000 ml at a stated 40-80 bottles/min, fed by an automatic high-flow gear pump.

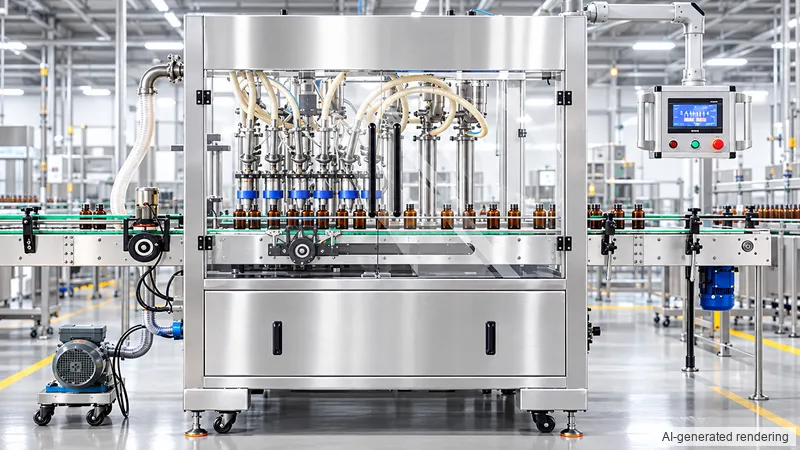

The ZS-SV6X is a continuous-motion piston filler whose tracking nozzles fill moving bottles, stated across four pump configurations from 5-100 ml to 100-1000 ml at a stated 40-80 bottles/min.
| Filling speed | 40–80 bottles/min |
|---|---|
| Fill range | 5–100ml / 10–300ml / 50–500ml / 100–1000ml |
| Container range | Bottle diameter 30–100mm; bottle height 40–250mm |
| Power supply | 110/220V, 50–60Hz, 6KW |
| Dimensions | Package size about 2210×1260×2220mm |
| Starting price | $20,999 |
| Machine weight | Package weight about 950kg |
| Construction materials | 316 stainless steel |
Technical specifications come from the machine manufacturer's published parameter tables. Price, lead time and warranty are shown here only when confirmed; otherwise request a quote.
Request a quote for current lead time and pricing against your configuration.
Commercial invoice, packing list, bill of lading and the machine's parameter documentation are provided with every export shipment. Machine-specific certificates, when applicable, are stated on the quotation — we list exactly what accompanies your order instead of claiming standard paperwork.
A quotation is prepared from: the machine model (or the product and container to pack), target output, destination country and any documentation your import process requires. Stating these up front keeps the quote comparable across suppliers.
Supply runs through own production plus a vetted outsourcing network, so the catalogue is not capped by one factory's floor. Typical lead times and current production slots are confirmed on the quotation for your configuration — no lead time on this page is a commitment.
Machines ship export-grade crated with a container loading plan. Store crated machines dry and upright, keep the protective film on until installation, and run the first production batch after on-site power and air supply are confirmed.
The page states the nozzles move with bottles during transport, so bottles fill without stopping; confirm your conveyor ecosystem and rate target against the stated 40-80 bottles/min window.
These are same-family alternatives, not drop-in equivalents — confirm the selection against your product, container and target output before ordering.
