Filling Machine
Model ZS-DTHSP2 · Filling Machine
Last updated: 2026-10

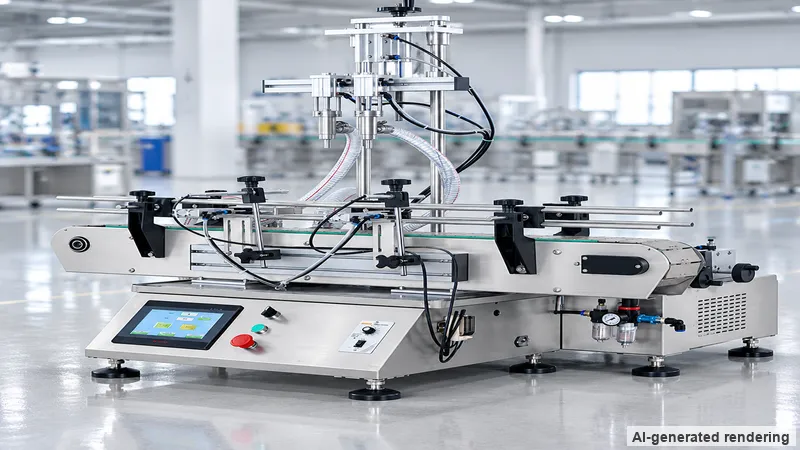

Two-head pneumatic piston filler for viscous liquids with six stated filling-range options, from 5–100ml up to 1000–5000ml (heads customizable): 10–30 bottles/min at ≤±1% accuracy and 0.4–0.6 MPa, with height-adjustable nozzles and photoelectric bottle positioning on a 1270 × 1030 × 1200mm, about 112kg frame.
The ZS-DTHSP2 is a two-head pneumatic piston filler for viscous liquids with six stated filling-range options from 5-100ml up to 1000-5000ml, stated at 10-30 bottles/min and ≤±1% accuracy at 0.4-0.6 MPa.
| Filling speed | 10–30 bottles/min (varies by bottle size & liquid) |
|---|---|
| Fill range | 5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml |
| Power supply | 220 V / 110 V, 50–60 Hz, 400 W |
| Dimensions | Approx. 1270 × 1030 × 1200 mm |
| Starting price | $3,599 |
| air supply | 0.4–0.6 MPa |
| Construction materials | 316 stainless steel (food grade) |
Technical specifications come from the machine manufacturer's published parameter tables. Price, lead time and warranty are shown here only when confirmed; otherwise request a quote.
Request a quote for current lead time and pricing against your configuration.
Commercial invoice, packing list, bill of lading and the machine's parameter documentation are provided with every export shipment. Machine-specific certificates, when applicable, are stated on the quotation — we list exactly what accompanies your order instead of claiming standard paperwork.
A quotation is prepared from: the machine model (or the product and container to pack), target output, destination country and any documentation your import process requires. Stating these up front keeps the quote comparable across suppliers.
Supply runs through own production plus a vetted outsourcing network, so the catalogue is not capped by one factory's floor. Typical lead times and current production slots are confirmed on the quotation for your configuration — no lead time on this page is a commitment.
Machines ship export-grade crated with a container loading plan. Store crated machines dry and upright, keep the protective film on until installation, and run the first production batch after on-site power and air supply are confirmed.
The stated 0.4-0.6 MPa working pressure means the filling heads run pneumatically, so confirm with the supplier that an air compressor is required and whether one is included, because the page does not list one in the package.
These are same-family alternatives, not drop-in equivalents — confirm the selection against your product, container and target output before ordering.
